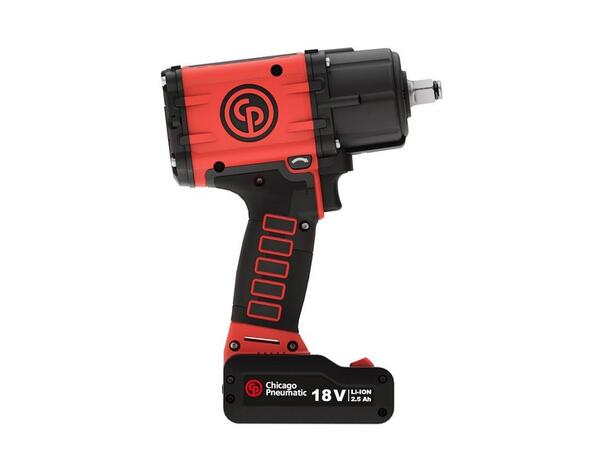

CP8854 Series - Impact Wrenches
2
in 1 unique technology designed to turn performance, lightweight and
the compact features of an air impact wrench into a cordless tool.
The
CP8854 series is designed for light vehicle tire changing applications
in workshops and roadside assistance.
The CP8854 combines the performance of Twin Hammer Mechanism technology
with the advantages of an advanced brushless electric motor.
This
innovation performs as well as air tools in terms of lightweight,
compact design, vibration, sound, power, and offers the mobility
advantage of cordless tools.
It provides a built-in SHUT OFF feature for
(80 ft.lbs. / ˜ 120 Nm).
It has a SNUGGING feature to eliminate hand
tightening.
No more overtightening.
CP8854 series comes in 2 styles 1/2'' short anvil and 1/2" 2'' long
anvil.

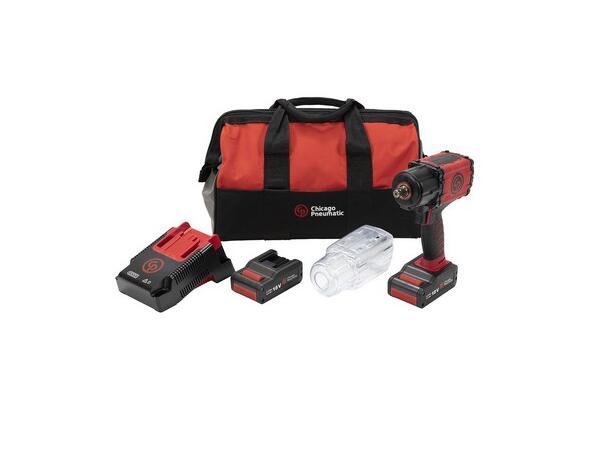

Available as a tool only or in a kit with two batteries and one
charger.
Technical Specifications
Design & Functions
FreeSpeed number of positions
1
Impact mecanism
Twin hammer
Clutch lubrication type
Grease
Output drive size (in)
1/2
Suspension option
Not available
Output retainer type
Friction ring
Torque
Torque Control System
Shut-off-current control
Max torque reverse
1050 Nm
Max working torque fwd
120 Nm
Speed
Free Speed Position 1
3150 rpm
Noise & vibrations
Uncertainty vibration-K
3.1 m/s²
Certifications, standards & directives
Power & Battery
Min Recommended Ambient Charging Temperature
10 °C
Max Ambient Operating Temperature
50 °C
Max Recommended Ambient Charging Temperature
38 °C
Storage
Max Ambient Storage Temperature
40 °C
Min Ambient Storage Temperature
32 ºF
