Automatisk drenering elektronisk med null luftforbruk

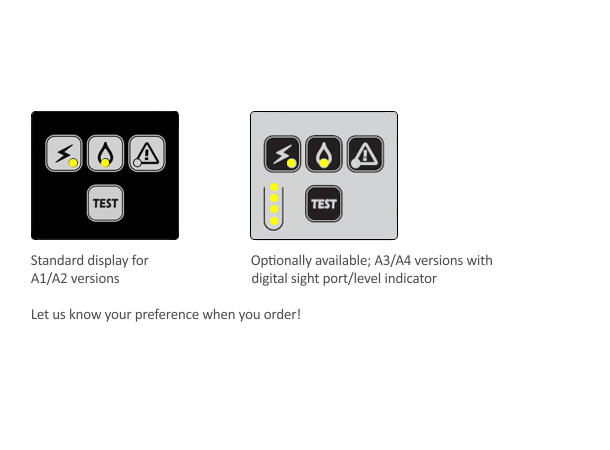

El. styrt magnetventil med alarmmulighet
Velegnet for trykktank, filterhus, tørker etc hvor man ønsker drenering
i solid utførelse som fungerer med 230V strømtilførsel.

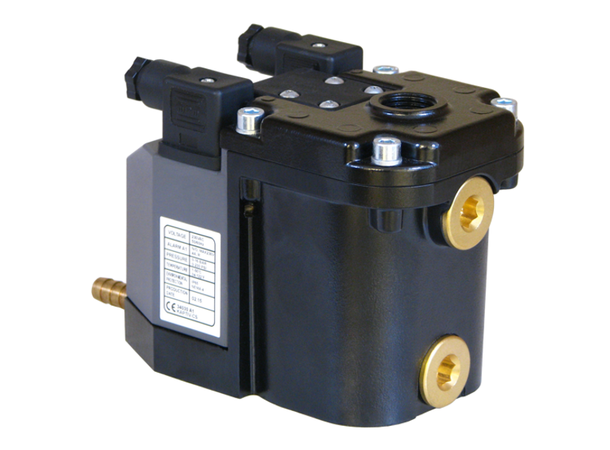

Anslutning 1/2" gjenge - 3 alternative innløp
Dreneringsgjenge 1/8"
IP68 beskyttet
0-16 bar arb trykk
1-50gr C arb temperatur.
Obs ved fare for minusgrader risikerer man at dreneringen blir stående å lekke luft.
Produsert i korrosjonsbestandig aluminium med utv. lakket overflate.
Electronic zero air loss drain up to 50 bar

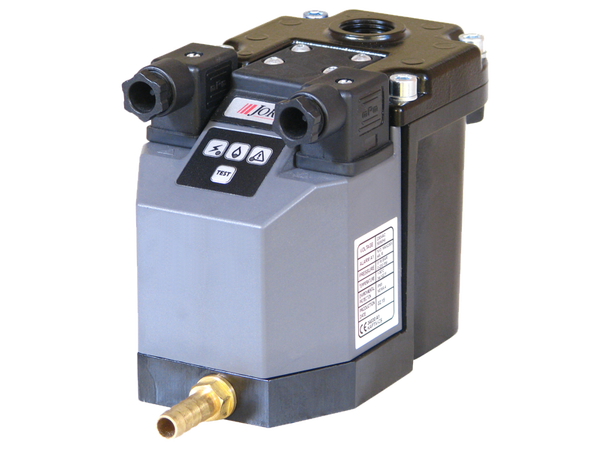

The KAPTIV-CS-HP is a compact electronically operated level sensed condensate drain which offers zero air-loss during the condensate discharge cycle for applications up to 50 bar.The KAPTIV-CS-HP is cost effective and offers a rapid pay-back period due to a competitive pricing level, low stocking cost, zero air loss and energy saving aspects.
The KAPTIV-CS-HP can be installed in all compressed air system components up to 100 m3/min. regardless size and climate zone – only 1 model needed!
The robust industrial housing, the alarm feature and the 2/2 way direct acting valve assembly make the KAPTIV-CS-HP a reliable solution for all compressed air system applications. The KAPTIV-CS-HP can be applied in oil lubricated as well as oil-free applications.

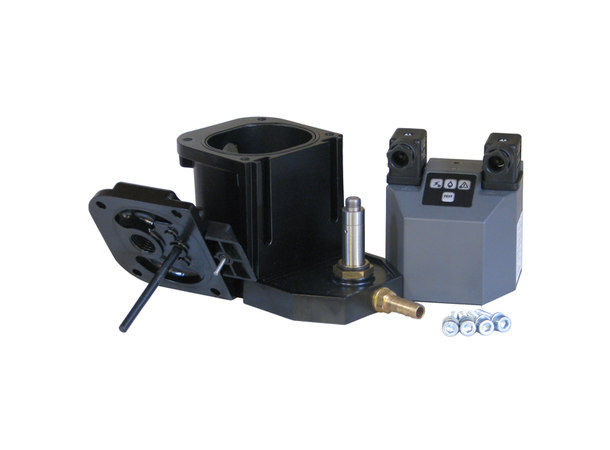

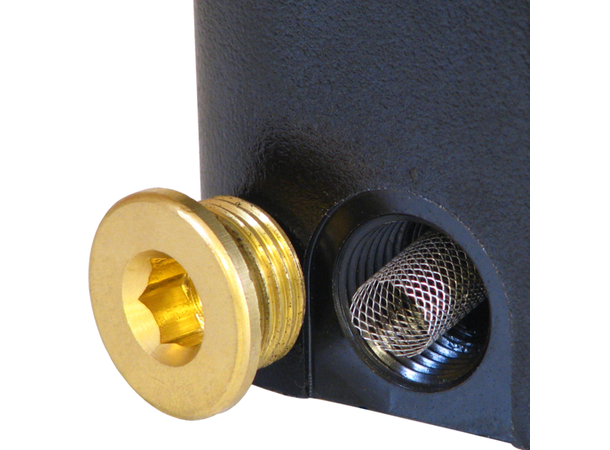

The KAPTIV-CS-HP offers an integrated mesh strainer (to prevent large particles from entering the valve orifice), is easy to disassemble and is service friendly.
