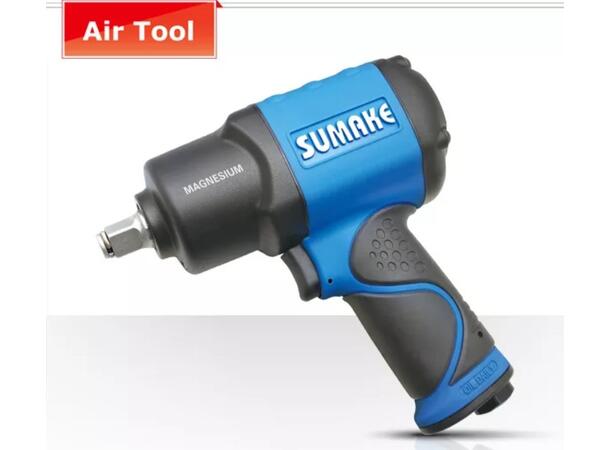

SUMAKE IW-1640 Muttertrekker
Robust og kompakt 1/2"
Muttertrekker. Hendig verktøy med mye kraft og lav vekt.
Benefits
The model ST-IW1640 is applied proved parts with mature manufacturing
process to reach the best balance of
performance-cost ratio according to
SUMAKE's standard qualification.
This model is designed as a best economic solution for professional
users who mainly need the tool to deal with
general nut tightening &
loosening applications such as passenger vehicle tire change or general
facility
maintenance very low noise, very limited
vibration and lightweight for operator comfort
| Model | IW-1640 |
| Part number | ST-IW1640 |
| Actual air consumption | 8 l/s |
| Air inlet thread size | 1/4 " |
| Blows per minute | 1250 |
| Box dimensions | 70 x 235 x 200 mm |
| Clutch type | Twin hammer |
| Free speed | 10000 rpm |
| Handle type | Pistol |
| Length | 190 mm |
| Maximum Torque (reverse) | 1152 Nm |
| Min. hose size | 10 mm |
| Net weight | 2,1 kg |
| Over carton | 360 x 245 x 410 mm |
| Power/weight ratio | 548.3 Nm/kg |
| Side to center | 32 mm |
| Socket retainer | Friction ring |
| Sound Power | 100 db(A) |
| Sound pressure | 89 db(A) |
| Square drive | 1/2 " |
| VST2 | 17.9 |
| Vibration | 6.6 m/s² |
| Vibration ISO | ISO-28927-2 |
| Vibration uncertainty (K) | 3.2 m/s² |
| Working Torque Range (fwd) | 120 - 850 Nm |
