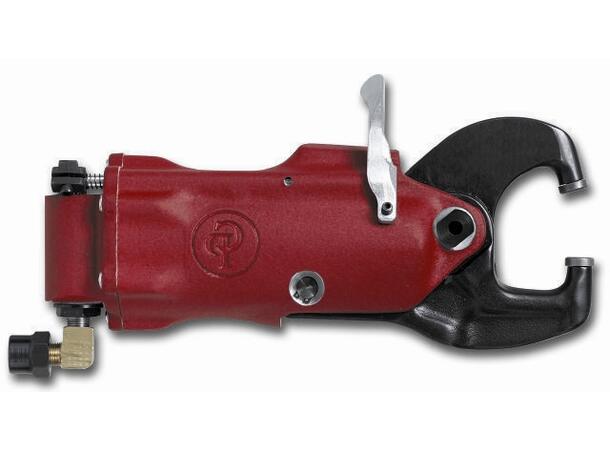

CP0214ANBEL
Single and tandem cylinder options
Riveting capacity -
diameter 1/8' 3.2mm (single cylinder)
diameter 3/16' 4.8mm (tandem cylinder)
Lock-off throttle - reduces the risk of accidental operation
| Part number | T012343 |
|---|
| Model | CP0214ANBEL |
|---|
| Benefits | Single Cylinder
|
|---|
| Type of tool | 0.125 |
|---|
| Capacity aluminum | 0.09375 mm |
|---|
| Max material thickness Aluminum | 1.5 mm |
|---|
| Max. cycles per minute | 38.1 |
|---|
| Hole diameter | 22.2 mm |
|---|
| Max. distance edge of sheet to hole centerline | 13.35 mm |
|---|
| Max. compressive force | 15.9 kN |
|---|
| Work clearance punch retracted | 1.3 mm |
|---|
| Reach | CR-1 (diam 3/16) mm |
|---|
| Net weight | 1.7 kg |
|---|
| Length | 233 mm |
|---|
| Sound pressure | 90 db(A) |
|---|
| Sound Power | 101 db(A) |
|---|
| Vibration (ISO-28927-4) | <2.5 m/s² |
|---|
