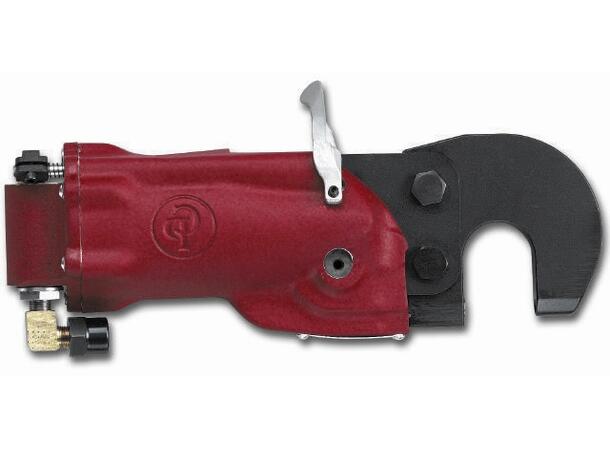

CP0214FALEL
Single and tandem cylinder options
Riveting capacity -
diameter 1/8' 3.2mm (single cylinder)
diameter 3/16' 4.8mm (tandem cylinder)
Lock off throttle - reduces the risk of accidental operation
| Part number | T013152 |
|---|
| Model | CP0214FALEL |
|---|
| Benefits | Tandem Cylinder
|
|---|
| Type of tool | 0.1875 |
|---|
| Capacity aluminum | 0.15625 mm |
|---|
| Max material thickness Aluminum | 1.5 mm |
|---|
| Max. cycles per minute | 38.1 |
|---|
| Hole diameter | 17.5 mm |
|---|
| Max. distance edge of sheet to hole centerline | 26.7 mm |
|---|
| Max. compressive force | 14.3 kN |
|---|
| Work clearance punch retracted | 1.6 mm |
|---|
| Reach | CR-1 (diam 3/16) mm |
|---|
| Net weight | 2.5 kg |
|---|
| Length | 356 mm |
|---|
| Sound pressure | 90 db(A) |
|---|
| Sound Power | 101 db(A) |
|---|
| Vibration (ISO-28927-4) | <2.5 m/s² |
|---|
