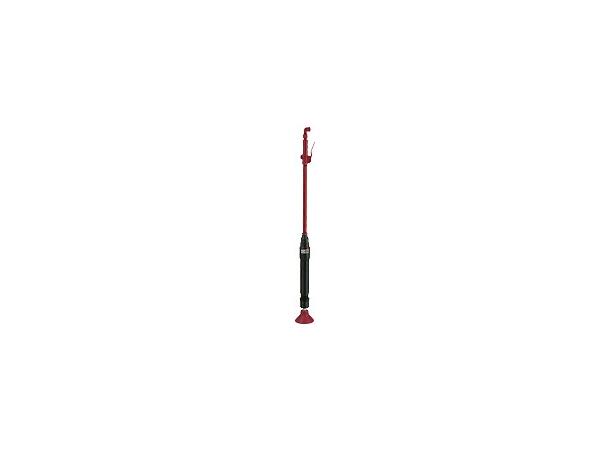

Stamper CP003
The CP 0003 and CP 0004 are designed to effectively compact soil around foundations and other structures, and for compacting backfill in trenches. Unlike the CP backfill tampers, many competitors on the market were designed for sand ramming only and thus lack the full power necessary for contracting operations. The CP 0003 is designed to handle light-to-medium applications; the CP 0004 is the ideal tool for heavier jobs.
Maximum power - slow, powerful blows efficiently and quickly compact all types of backfill, including clay and soils containing high percentages of finely crushed or powered material
Heat-treated cylinder and chrome plated piston - significantly extend tool life
Adjustable packing-maintains a positive air seal
Butt held with clamp screw - for quick, easy replacement
Exhaust deflector - directs air, moisture and oil away from operator
Integral oiler - continuously lubricates tool during operation
Well balanced, smooth operation tool - easily guided by one person
Tekniske data:
Description CP 0003
Part no T019307
Weight kg 13,5
Length mm 1320
Stroke mm 152
Air consumption l/s 8
Air inlet inch 1/2
Blows per minute 800
Valve type Simplate valve
Comments
Muffler ref. no P 126126
