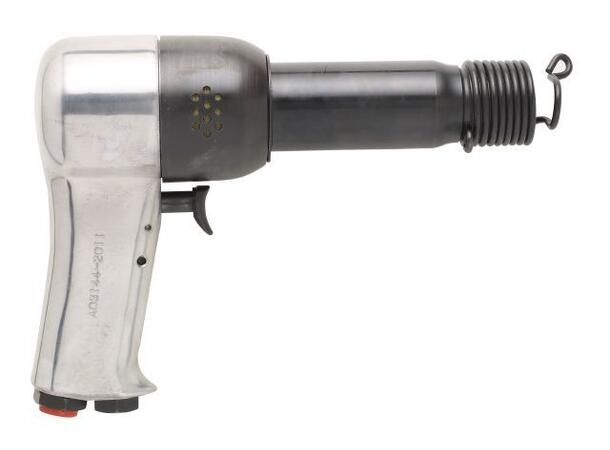

CP717 Meiselhammer
Super duty meiselmaskin for bil,
Lastebil, anleggsmaskiner og karosseri
Benefits
Power and precision
Flexible operating positions
Ideal tool for deep cutting, bolt riveting and super-duty applications
Features
Heavy duty pistol grip hammer
Standard .498" round shank
High power air hammer
Positive action trigger
| Model | CP717 |
| Part number | T020120 |
| Actual air consumption | 354 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 89 l/mn |
| Blows per minute | 1800 |
| Bore | 19 mm |
| Chisel rivet set shank | 12.7 mm |
| Cold rivet capacity | 6.4 mm |
| Cold rivet capacity (steel) | 4.8 mm |
| Length | 190 mm |
| Min. hose size | 10 mm |
| Net weight | 2.15 kg |
| Power (Joules) | 7.3 joule |
| Shank | Round |
| Sound DBA pressure | 94 db(A) |
| Sound Power | 105 db(A) |
| Stroke | 68 mm |
| Vibration | 20.4 m/s² |
| Vibration ISO | ISO-28927-9 |
| Vibration uncertainty (K) | 6.2 m/s² |
