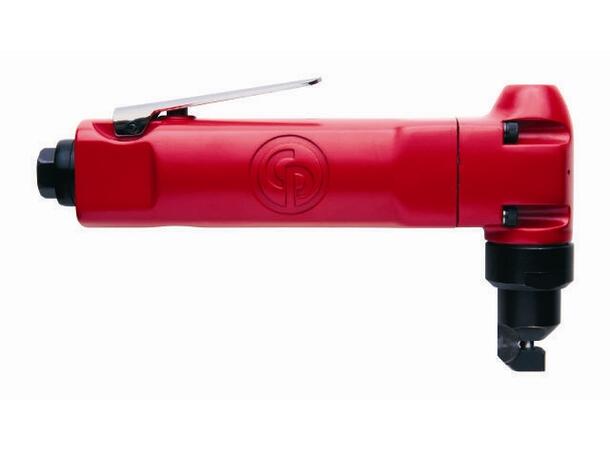

CP835 Nibblemaskin (platetygger)
Effektiv nibbler for tynnplate
(karroseri), opp til 1,6mm stål/3,4mm aluminium
Benefits
Easy to operate and control
Perfect for accurate cutting and best for tight corners and circles
Used for nibbling plastic, tin, aluminum and others metals
Features
Heavy-duty nibbler
Rugged head and 0.177" diameter punch cuts steel up to .060" (16
gauge) and aluminum up to .102" (10 gauge)
Easy access to punch and die for quick replacement
Lock-off lever for low-speed starting
4 optional cutting positions
| Model | CP835 |
| Part number | T022550 |
| Actual air consumption | 481.230769230769 l/mn |
| Air inlet thread size | 1/4 " |
| Average air consumption | 2 l/s |
| Length | 216 mm |
| Min. hose size | 10 mm |
| Net weight | 0.59 kg |
| Sound DBA pressure | 97 db(A) |
| Sound pressure | 86 db(A) |
| Strokes per minute | 2750 |
| Vibration | 5.4 m/s² |
| Vibration ISO | ISO-28927-8 |
| Vibration uncertainty (K) | 3 m/s² |
