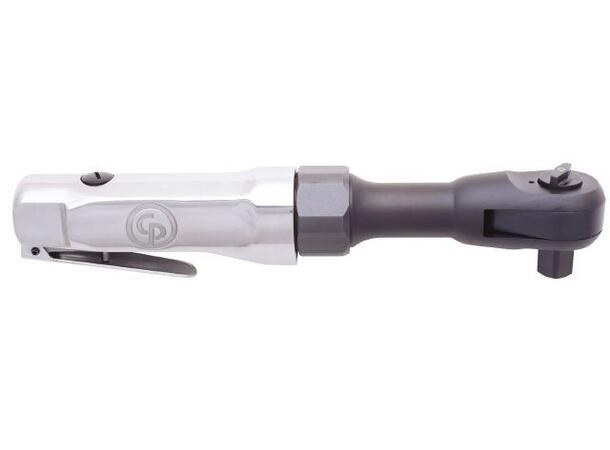

CP828H Luftskralle 1/2" Classic-range

Bil og karosseri, std bruk 68Nm

Varenr: T022970
BeskrivelseTeknisk infoSupport
Beskrivelse

CP828H Luftskralle 1/2" Classic-range



1/2" skralle med CP's patenterte Trispring skrallehode. "Easy touch" Trigger gir god hastighetskontroll

Benefits

Ratchets for General Maintenance with excellent durability
Great power up to 50 ft.lbs (70 Nm)

Features

1/2" standard ratchet
Features CP's patented TriSpring anti-slip head design
Grease fitting on the reverse lever

ModelCP828H
Part numberT022970
Actual air consumption425 l/mn
Air inlet thread size1/4 "
Average air consumption106 l/mn
Free speed150 rpm
Length254 mm
Max torque70 Nm
Min. hose size10 mm
Net weight1.1 kg
Sound DBA pressure103 db(A)
Sound pressure97 db(A)
Square drive1/2 "
Vibration3.2 m/s²
Vibration ISOISO-28927-2
Vibration uncertainty (K)1.3 m/s²
Working torque Range13 - 70 Nm






Teknisk info

Produktinformasjon

Gruppe 1 Verktøyteknikk
Gruppe 2 Chicago Pneumatic VS
Gruppe 3 Luftskralle
Produsent Chicago Pneumatic
