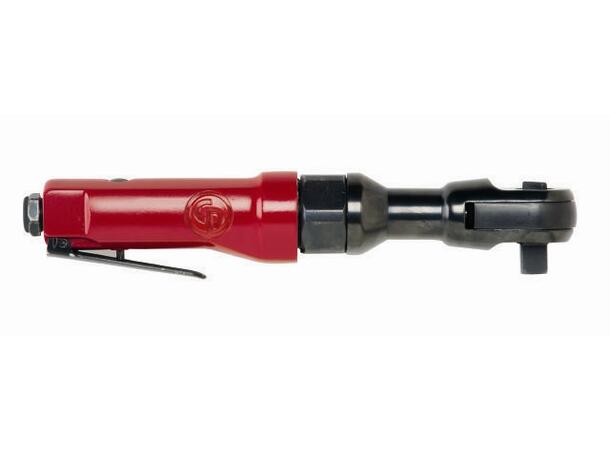

CP886H Luftskralle 1/2"

Bil og karosseri, lett bruk, 68Nm

Varenr: T024391

Beskrivelse

CP886H Luftskralle

Rimelig luftskralle med god ytelse

Benefits

Good durability over other economically priced ratchets
Easy grip reverse for simple directional changes

Features

1/2" ratchet
Compact head design
Hardened gears

Model	CP886H
Part number	T024391
Actual air consumption	481 l/mn
Air inlet thread size	1/4 "
Average air consumption	120 l/mn
European Directives	2006/42/EC (17/05/2006)
European Sound standard	EN ISO 15744
European Standards	EN ISO 11148-6:2010
Free speed	160 rpm
Length	260 mm
Max torque	68 Nm
Min. hose size	10 mm
Net weight	1.19 kg
Sound Power	110 db(A)
Sound pressure	99 db(A)
Square drive	1/2 "
Vibration	3.7 m/s²
Vibration ISO	ISO-28927-2
Vibration uncertainty (K)	1.3 m/s²
Working torque Range	13 - 68 Nm

Teknisk info

Produktinformasjon

Gruppe 1	Verktøyteknikk
Gruppe 2	Chicago Pneumatic VS
Gruppe 3	Luftskralle
Produsent	Chicago Pneumatic
