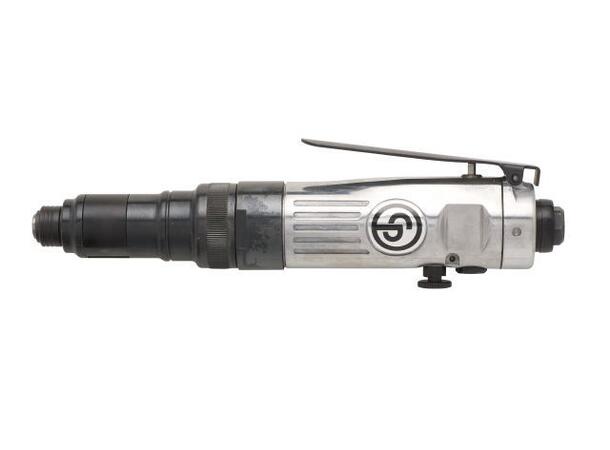

CP782 Skrutrekker, rett
•Cushion clutch with external
clutch adjustment
•Built-in quick change chuck
•Convenient forward/reverse valve
•Ideal for general repair and body shop work
Benefits
Reliable cushion clutch
Comfortable use thanks to low weight
Faster cycle times with 1,800 rpm
Ideal tool for general assembly operations on metal, wood, PVC, or any repair
applications
Features
Straight Cushion clutch
Screwdriver
External clutch adjustment
Built-in 1/4" Female Hexagonal quick-change
Convenient single handed forward/reverse valve
High torque: 44 in.lbs (5 Nm)
Progressive lever start and suspension bail
|
| Model | CP782 | |
| Part number | T025097 | |
| Actual air consumption | 453 l/mn | 16 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 113 l/mn | 4 cfm |
| Bit holder | Quick Change Hexagonal Female | |
| Clutch type | Cushion | |
| Diameter | 30 mm | 0.76 " |
| Free speed | 1800 rpm | |
| Free speed air consumption | 7.6 l/s | 16.1 cfm |
| Handle type | Straight | |
| Length | 245 mm | 9.63 " |
| Max working torque | 4.97 Nm | 3.7 ft.lbs |
| Min working torque | 3.5 Nm | 2.58 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 1.13 kg | 2 1/2 lb |
| Output drive | 1/4 " | |
| Sound Power | 104.9 db(A) | |
| Sound pressure | 93.9 db(A) | |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | - m/s² |
