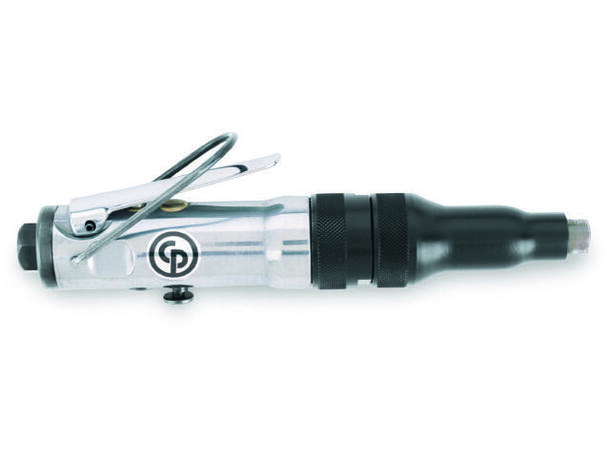

CP783 Skrutrekker, rett
•Cushion clutch with internal
clutch adjustment
•Compact design for easy handling
•Magnetic bit holder
•Ideal for general repair and body shop work
Benefits
Reliable cushion clutch
Comfortable use thanks to low weight
Faster cycle times with 2000rpm
Ideal tool for general assembly operations on metal, wood, PVC, or any repair
applications
Features
Straight Cushion clutch
Screwdriver
External clutch adjustment
Built-in 1/4" Female Hexagonal quick-change
Convenient one-hand forward/reverse valve
High speed 2000 rpm
Progressive lever start and suspension bail
Magnetic bit holder
|
| Model | CP783 | |
| Part number | T025098 | |
| Actual air consumption | 453 l/mn | 16 cfm |
| Air inlet thread size | 1/4 " | |
| Average air consumption | 113 l/mn | 4 cfm |
| Bit holder | Quick Change Hexagonal Female | |
| Clutch type | Cushion | |
| Diameter | 16 mm | 0.61 " |
| Free speed | 2000 rpm | |
| Free speed air consumption | 4.2 l/s | 9 cfm |
| Handle type | Straight | |
| Length | 226 mm | 8.88 " |
| Max working torque | 2.83 Nm | 2.06 ft.lbs |
| Min working torque | 1.13 Nm | 0.8 ft.lbs |
| Min. hose size | 10 mm | 3/8 " |
| Net weight | 0.6 kg | 1.33 lb |
| Output drive | 1/4 " | |
| Sound Power | 99.1 db(A) | |
| Sound pressure | 88.1 db(A) | |
| Vibration | <2.5 m/s² | |
| Vibration ISO | ISO-28927-2 | |
| Vibration uncertainty (K) | - m/s² |
