CP824 Skralle 1/4"

Bil og karosseri, lett bruk 17Nm

Varenr: T025390

Beskrivelse

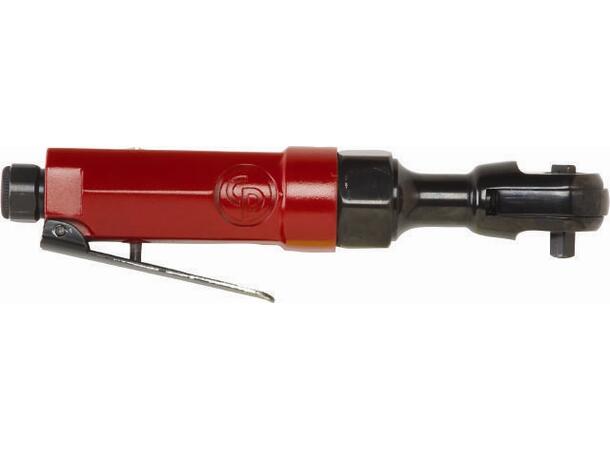

CP824 Luftkralle

Liten luftskralle for mindre montering og demonteringsoppgaver

Benefits

Compact and lightweight
Designed for greater reach in confined areas
Excellent for under-dashboard work, small engine repair and small fasteners

Features

1/4" ratchet
Easy speed control
Extended length

Model	CP824
Part number	T025390
Actual air consumption	425 l/mn
Air inlet thread size	1/4 "
Average air consumption	106 l/mn
European Sound standard	EN ISO 15744
Free speed	220 rpm
Length	197 mm
Max torque	17 Nm
Min. hose size	10 mm
Net weight	0.51 kg
Sound Power	102 db(A)
Sound pressure	91 db(A)
Square drive	1/4 "
Vibration	4.1 m/s²
Vibration ISO	ISO-28927-2
Vibration uncertainty (K)	2 m/s²
Working torque Range	5 - 17 Nm

Teknisk info

Produktinformasjon

Gruppe 1	Verktøyteknikk
Gruppe 2	Chicago Pneumatic VS
Gruppe 3	Luftskralle
Produsent	Chicago Pneumatic
