Specifications -

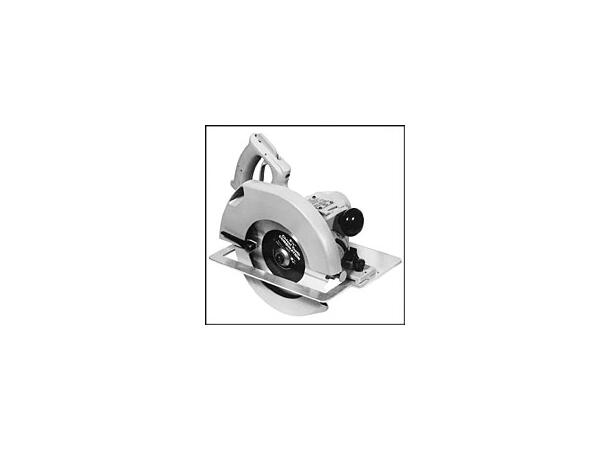

Model Number S120
Free Speed rpm 2050
Speed @ MAX Power rpm 1400
Weight lb 28.5 lbs.
Max Power HP  | KW 3,2 | 2.4
Blade Diameter 12 "  |  305 mm
Arbor Hole Diameter 1 "  | 25 mm
Max Depth of Vertical Cut 4 3/8" | 111 mm
Min Depth of Vertical Cut  1 3/8"  | 34,9 mm
Max Depth of Cut Angle in. | mm 4"| 100 mm
Max Thickness of Material for 45 degrees 2 7/8"  | 72,6 mm
Length 19 7/8"  | 505 mm
Width 10 5/16"  | 262 mm
Dist. From Blade to End of Motor Casing 8 5/16" | 211 mm
Recommended Hose Size in 3/4 | 19 mm
Air Inlet Size (NPT) in 1/2
Air Consumption cfm 88

Features
Self-locking throttle.
Air power means no motor burnout from stalls.
Exclusive self-regulating motor with patented controller for more power with less weight.
Depth and angle of cut are easily adjusted.
Standard Equipment
Grip Handle with Lock-off Throttle.
Built-in Lubricator.
