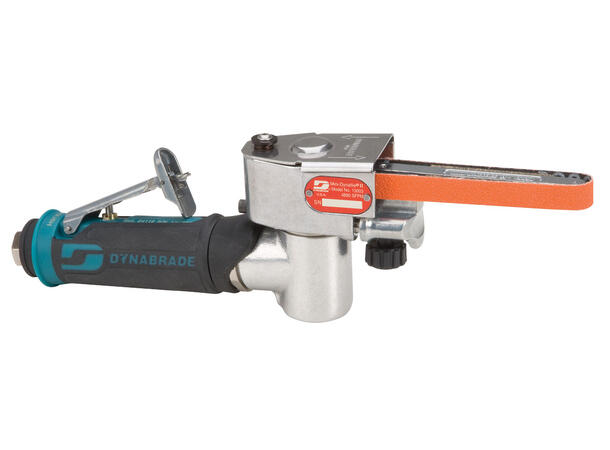

DB-15003 Mini-Dynafile II Abrasive Belt Tool

.4 hp, 7 Degree Offset, 25,000 RPM, Rear Exhaust, for 1/8"-1/2" W x 12" L (3-13 mm x 305 mm) Belts

·
Ideal for strap polishing and working in narrow openings. Tool includes 15026 Contact Arm for 1/2" wide x 12" long abrasive belts and 15118 Drive Wheel.

·         Lightweight ergonomic design handle features 7 degree offset. Multi-position grinding head pivots 360 Degree.

·         Belt guard easily detaches for quick abrasive change; simple belt tracking adjustment knob.

·         For added versatility, tool can be easily converted to Die Grinder with optional 01644 (1/4") Threaded Collet Insert.

·         40378 Rubber Drive Wheel may be ordered separately, for efficient use with optional non-woven nylon belts.

Belt Size Inches (mm):

1/8-1/2" (3-13) W x 12" (305) L

hp (W):

.4 (321)

Motor Free Speed (RPM):

25,000

Max. SFPM (SM/Min.):

4,890 (1,486)

Motor Style:

7 Degree Offset

Exhaust Type:

Rear Exhaust

Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.):

20 (566)

Air Inlet Thread:

1/4" NPT

Hose I.D. Size Inches (mm):

1/4" (6)

Length Inches (mm):

11-3/4" (298)

Height Inches (mm):

3-1/2" (89)

Item Weight:

0.77 kg

Packaged Weight:

1.12 kg
