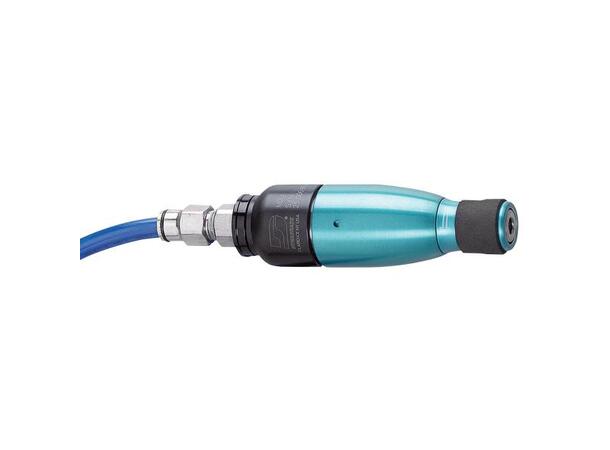

DB-52864
.4 hp Straight-Line Pencil Grinder
25,000 RPM, Rotary Vane Air Motor, Rear Exhaust, 6 mm Collet
Tool has
integrated collet with 1/4" Collet Insert (01497). Optional 52898 Thread
Guard allows easy access to collet cap. With Thread Guard in place, larger
diameter accessories may be run by tool. (All accessories must have maximum
operating speed of 25,000 RPM).
High-efficiency
rotary vane air motor models are ideal for precision deburring and finishing on
a variety of surfaces.
An ideal
tool for use in casting houses, effective on cast parts of aluminum, bronze and
brass. Quickly and efficiently removes gates and parting lines in cast parts.
Adjustable
tool speed from 5,000 RPM to 25,000 RPM. Operate tool and adjust speed by
simply rotating rear black cover.
Tactile
grip on shaft end allows fingertip control, and alerts operator to rotating
collet area. Changing of attachment is achieved with easy, two-wrench maneuver.
Unique housing shape allows tool to be held as a traditional Die Grinder.
Motor Free Speed (RPM):
|
|
25,000
|
|
Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.):
|
|
20 (566)
|
|
Air Inlet Thread:
|
|
1/4" NPT
|
|
Hose I.D. Size Inches (mm):
|
|
1/4" (6)
|
|
Length Inches (mm):
|
|
5.66" (144)
|
|
Height Inches (mm):
|
|
1-1/2 (39)
|
|
