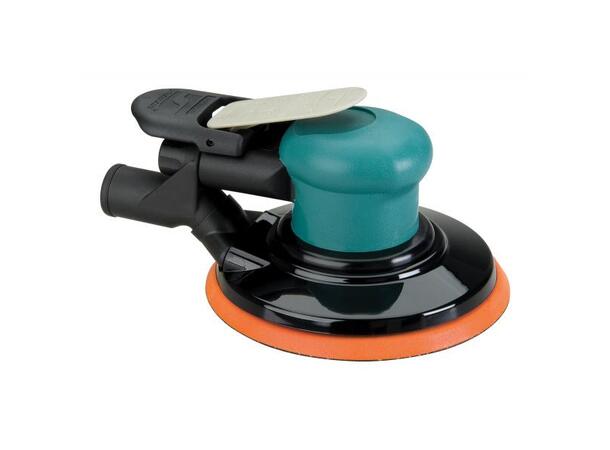

DB-59029
6" (152 mm) Dia. Central Vacuum Dynorbital-Spirit Random Orbital
Sander
.25 hp, 12,000 RPM, 3/16" (5 mm) Dia. Orbit, Rear Exhaust
Includes
low profile, premium urethane weight-mated sanding pad. Grey lever identifies
3/16" (5 mm) dia. orbit, used for general sanding.
Drop-In
Motor available (sold separately) to reduce costly down-time associated with
routine maintenance. More Power - True 12,000 RPM air motor. Floating rotor
utilizes five blades, producing more usable power (.25 hp/186 W).
High-strength, composite rotor has better lubricating qualities, allowing
blades to last longer. Less air (14 SCFM/396 LPM) is used more efficiently to
maintain maximum power.
Comfort
Platform provides additional hand and wrist support, further enhancing operator
comfort. Also offers increased protection against cold air exhaust. (NOTE:
Comfort Platform is removable.) Order 59330 Comfort Platform (U.S. Patent No.
D610,428) separately, to install on existing tools!
Throttle
lever recesses into housing grip when depressed, eliminating pressure-point on
operator's palm. Dynorbital-Spirit lever is made from composite material to
insulate against cold air. Lever is color-coded to designate tool orbit. Easy
maintenance and vacuum conversion. Muffler elements are easily changed for
convenient maintenance. Low Sound Levels. Muffling system reduces exhaust sound
levels.
Speed
Control allows thumb-control regulating of tool speed. Lighter air-motor
assembly, ideal for vertical and overhead sanding applications. Precision
one-piece motor shaft and counterbalance. High-quality Double Row Pad Bearing,
protected by unique V-Seal, improves bearing life and ensures reduced
vibration. Perfectly-balanced, weight-mated sanding pad with one-piece hub
design. Dynabrade premium urethane pads offer smoother operating performance
and minimal vibration.
Backing Pad Diameter Inch (mm):
|
|
6" (152)
|
|
Tool Spindle Thread:
|
|
5/16"-24 Female
|
|
Orbit Dia. Inch (mm):
|
|
3/16" (5)
|
|
Max. Air Flow @ 90 PSIG: SCFM (L/Min.):
|
|
14 (396)
|
|
Hose I.D. Size Inch (mm):
|
|
1/4" (6)
|
|
Length Inch (mm):
|
|
7-3/4" (197)
|
|
Height Inch (mm):
|
|
3-1/2" (89)
|
|
