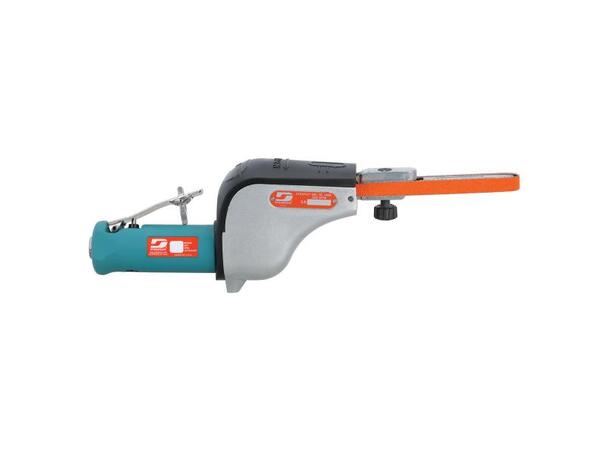

DB-14000 Dynafile Abrasive Belt Tool

.5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts

·
World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more!

·         Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.

·         Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long. Work in areas as small as 3/8" diameter.

·         Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change!

·         Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.

Belt Size Inches (mm):

1/8-1/2" (3-13) W x 24" (610) L

hp (W):

.5 (373)

Motor Free Speed (RPM):

20,000

Max. SFPM (SM/Min.):

5,800 (1,762)

Motor Style:

Straight-Line

Exhaust Type:

Front Exhaust

Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.):

31 (878)

Air Inlet Thread:

1/4" NPT

Hose I.D. Size Inches (mm):

1/4" (6)

Length Inches (mm):

14.6" (371)

Height Inches (mm):

4.6" (116)

Item Weight:

1.51 kg

Packaged Weight:

1.86 kg
