DB-14010 Dynafile Abrasive Belt Tool Versatility Kit

.5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts

·
World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more! Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.

·         Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Work in areas as small as 3/8" diameter. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long.

·         Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change! Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.

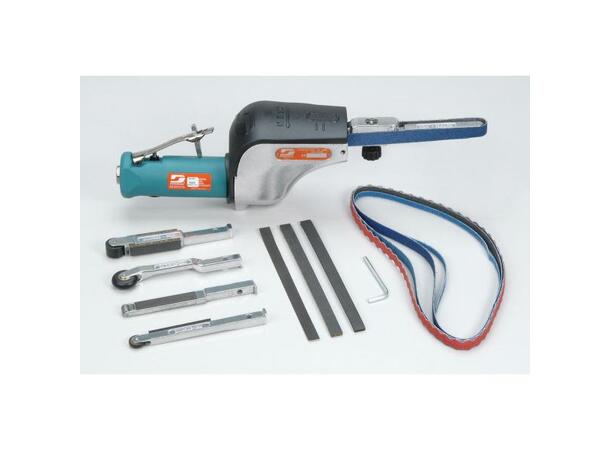

·         Includes 14000 Dynafile with five popular Contact Arms, plus an assortment of abrasive belts, in durable case. Includes Contact Arms 11213, 11216, 11218, 11219 and 11231

Belt Size Inches (mm):

1/8-1/2" (3-13) W x 24" (610) L

hp (W):

.5 (373)

Motor Free Speed (RPM):

20,000

Max. SFPM (SM/Min.):

5,800 (1,762)

Motor Style:

Straight-Line

Exhaust Type:

Front Exhaust

Max. Air Flow @ 90 PSIG (6.2 Bar): SCFM (L/Min.):

31 (878)

Air Inlet Thread:

1/4" NPT

Hose I.D. Size Inches (mm):

1/4" (6)

Length Inches (mm):

14.6" (371)

Height Inches (mm):

4.6" (116)

Item Weight:

1.7 kg

Packaged Weight:

3 kg
